Using Flash Swaps on Bluefin

Overview

The flash swap functionality allows you to borrow tokens from a pool without collateral, use them in other operations, and repay them within the same transaction. This guide covers both TypeScript and Move implementations.

Understanding Token Borrowing and Repayment

Token Borrowing:
- Users borrow only one token at a time, not both
- The borrowed token is determined by the a2b parameter:

     // If a2b = true: Borrow Token B
     let (balance_a, balance_b, receipt) = pool::flash_swap<CoinTypeA, CoinTypeB>(
         // ... parameters with a2b = true ...
     );
     // balance_a will be zero
     // balance_b will contain the borrowed Token B

     // If a2b = false: Borrow Token A
     let (balance_a, balance_b, receipt) = pool::flash_swap<CoinTypeA, CoinTypeB>(
         // ... parameters with a2b = false ...
     );
     // balance_a will contain the borrowed Token A
     // balance_b will be zero

Receipt Structure

   struct FlashSwapReceipt<phantom CoinTypeA, phantom CoinTypeB> {
       pool_id: ID,        // ID of the pool the tokens were borrowed from
       a2b: bool,          // Direction of the swap (which token was borrowed)
       pay_amount: u64,    // Amount that must be repaid (including fees)
   }

What Must Be Repaid?

Repayment Requirements:
- Must return the same token that was borrowed
- Amount to repay is stored in receipt.pay_amount
- Repayment amount includes:
- Original borrowed amount
- Pool fees
- Protocol fees

   // 1. Borrow Token B
   let (_, borrowed_token_b, receipt) = pool::flash_swap<CoinTypeA, CoinTypeB>(
       // ... parameters with a2b = true ...
   );

   // 2. Use Token B in another protocol
   let used_token_b = use_in_other_protocol(borrowed_token_b);

   // 3. Repay Token B
   pool::repay_flash_swap<CoinTypeA, CoinTypeB>(
       protocol_config,
       pool,
       balance::zero<CoinTypeA>(),  // No Token A to repay
       used_token_b,                // Repay Token B
       receipt                      // Contains repayment amount
   );

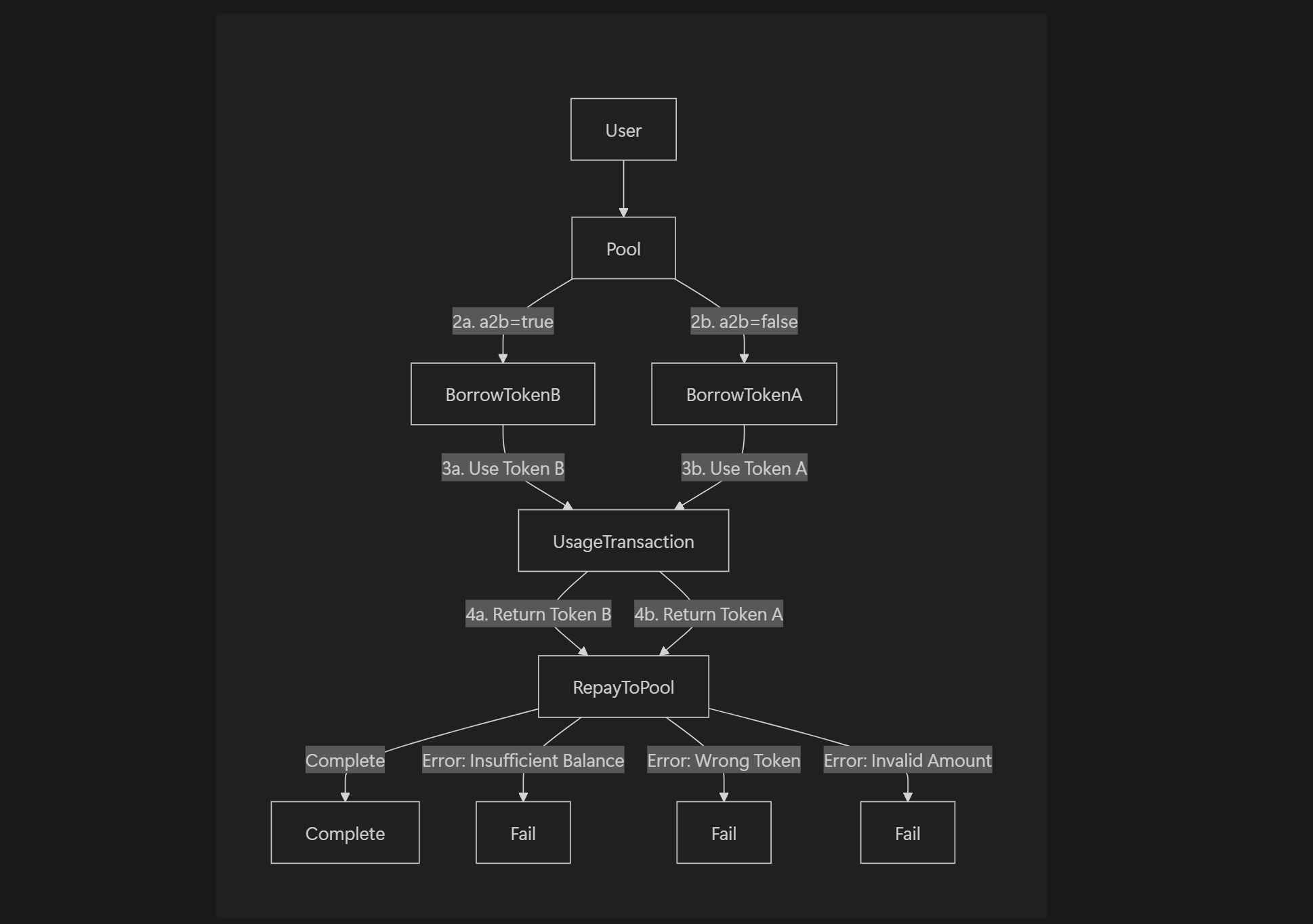

Visual Flow

Function Signatures and Parameters

1. Flash Swap Function

public fun flash_swap<CoinTypeA, CoinTypeB>(
    clock: &Clock,
    protocol_config: &GlobalConfig,
    pool: &mut Pool<CoinTypeA, CoinTypeB>,
    a2b: bool,
    by_amount_in: bool,
    amount: u64,
    sqrt_price_max_limit: u128
) : (Balance<CoinTypeA>, Balance<CoinTypeB>, FlashSwapReceipt<CoinTypeA, CoinTypeB>)

Parameters:

Generic Types:
- CoinTypeA: First token type in the pool
- CoinTypeB: Second token type in the pool
clock: &Clock ( passes as string object ID)
- Reference to Sui's clock object
- Used for timestamp validation and event tracking
- Required for protocol operations
protocol_config: &GlobalConfig ( passes as string object ID)
- Reference to protocol's global configuration
- Contains protocol-wide settings and parameters
- Used for version checking and protocol validation
pool: &mut Pool<CoinTypeA, CoinTypeB> ( passes as string object ID)
- Mutable reference to the pool object
- Contains pool state, balances, and configuration
- Modified during the flash swap operation
a2b: bool
- Direction of the swap
- true: Borrow Token B (swap from A to B)
- false: Borrow Token A (swap from B to A)
by_amount_in: bool
- Specifies how the amount parameter should be interpreted
- true: amount is the input amount
- false: amount is the output amount
amount: u64 (must be scaled to the required token decimals)
- The amount to be swapped
- Interpreted as input or output based on by_amount_in
- Must be greater than 0
sqrt_price_max_limit: u128
- Maximum/minimum price limit for the swap
- In square root price format (Q64.64)
- Used for slippage protection
- can be fetched from chain/contracts

Returns:

Balance: Balance of Token A (will be zero for a2b=true)
Balance: Balance of Token B (will be zero for a2b=false)
FlashSwapReceipt: Contains information needed for repayment

2. Repay Flash Swap Function

public fun repay_flash_swap<CoinTypeA, CoinTypeB>(
    protocol_config: &GlobalConfig,
    pool: &mut Pool<CoinTypeA, CoinTypeB>,
    coin_a: Balance<CoinTypeA>,
    coin_b: Balance<CoinTypeB>,
    receipt: FlashSwapReceipt<CoinTypeA, CoinTypeB>
)

Parameters:

Generic Types:
- CoinTypeA: First token type in the pool
- CoinTypeB: Second token type in the pool
protocol_config: &GlobalConfig
- Reference to protocol's global configuration
- Used for version checking and protocol validation
pool: &mut Pool<CoinTypeA, CoinTypeB>
- Mutable reference to the pool object
- Will be modified to update balances and state
coin_a: Balance
- Balance of Token A to be repaid
- Should be zero if a2b was true in flash_swap
- Should contain repayment amount if a2b was false
coin_b: Balance
- Balance of Token B to be repaid
- Should be zero if a2b was false in flash_swap
- Should contain repayment amount if a2b was true
receipt: FlashSwapReceipt<CoinTypeA, CoinTypeB>
- Receipt from the original flash_swap call
  - Contains:
    - pool_id: ID of the pool
    - a2b: Direction of the original swap
    - pay_amount: Amount that must be repaid

Returns:

None
Modifies the pool state directly

Integration Guide

1. TypeScript Implementation (using Mysten SDK)

async function executeFlashSwap(
    client: SuiClient,
    poolId: string,
    configId: string,
    clockId: string,
    a2b: boolean,
    byAmountIn: boolean,
    amount: bigint,
    sqrtPriceMaxLimit: bigint
) {
    const tx = new TransactionBlock();

    // 1. Call flash_swap
    const [balanceA, balanceB, receipt] = tx.moveCall({
        target: `${PACKAGE_ID}::pool::flash_swap`,
        arguments: [
            tx.object(clockId),
            tx.object(configId),
            tx.object(poolId),
            tx.pure(a2b),
            tx.pure(byAmountIn),
            tx.pure(amount),
            tx.pure(sqrtPriceMaxLimit)
        ],
        typeArguments: [COIN_TYPE_A, COIN_TYPE_B]
    });

    // 2. Use the borrowed tokens (example: swap in another pool)
    const [swappedBalance] = tx.moveCall({
        target: `${OTHER_PACKAGE_ID}::pool::swap`,
        arguments: [balanceA, balanceB],
        typeArguments: [COIN_TYPE_A, COIN_TYPE_B]
    });

    // 3. Repay the flash swap
    tx.moveCall({
        target: `${PACKAGE_ID}::pool::repay_flash_swap`,
        arguments: [
            tx.object(configId),
            tx.object(poolId),
            swappedBalance,
            tx.object(receipt)
        ],
        typeArguments: [COIN_TYPE_A, COIN_TYPE_B]
    });

    return tx;
}

2. Move contracts integeration

module custom_module::flash_swap_example {
    use sui::clock::{Self, Clock};
    use bluefin_spot::pool::{Self, Pool, FlashSwapReceipt};
    use bluefin_spot::config::{Self, GlobalConfig};
    use sui::balance::{Self, Balance};
    use sui::tx_context::{Self, TxContext};

    public fun execute_flash_swap<CoinTypeA, CoinTypeB>(
        clock: &Clock,
        protocol_config: &GlobalConfig,
        pool: &mut Pool<CoinTypeA, CoinTypeB>,
        a2b: bool,
        by_amount_in: bool,
        amount: u64,
        sqrt_price_max_limit: u128,
        ctx: &mut TxContext
    ) {
        // 1. Borrow tokens
        let (balance_a, balance_b, receipt) = pool::flash_swap<CoinTypeA, CoinTypeB>(
            clock,
            protocol_config,
            pool,
            a2b,
            by_amount_in,
            amount,
            sqrt_price_max_limit
        );

        // 2. Use the borrowed tokens (example: swap in another pool)
        let (swapped_balance_a, swapped_balance_b) = use_borrowed_tokens<CoinTypeA, CoinTypeB>(
            balance_a,
            balance_b,
            ctx
        );

        // 3. Repay the flash swap
        pool::repay_flash_swap<CoinTypeA, CoinTypeB>(
            protocol_config,
            pool,
            swapped_balance_a,
            swapped_balance_b,
            receipt
        );
    }

    fun use_borrowed_tokens<CoinTypeA, CoinTypeB>(
        balance_a: Balance<CoinTypeA>,
        balance_b: Balance<CoinTypeB>,
        ctx: &mut TxContext
    ): (Balance<CoinTypeA>, Balance<CoinTypeB>) {
        // Implement your logic here
        // Example: Swap in another pool, use in another protocol, etc.
        (balance_a, balance_b)
    }
}

Common Errors

Common errors to handle:

EFlashSwapInProgress: Another flash swap is in progress
ENoFlashSwapInProgress: Trying to repay without an active flash swap
EInvalidPriceLimit: Price limit is outside allowed range
EInsufficientAmount: Amount is zero or too small

Important Considerations for Token Handling

Token Selection:
- Choose the correct token to borrow based on your use case
- Consider the direction of the swap (a2b)
- Remember that only one token can be borrowed at a time
Repayment Verification:
- Always verify the receipt matches the pool
- Ensure you're repaying the correct token
- Include all fees in the repayment amount
Error Handling:
- Handle cases where the borrowed token is zero
- Verify the repayment amount matches the receipt
- Check for sufficient balance before repayment
